Ferrule-Locked Stainless Steel Wire Rope Mesh

304 / 304L / 316 / 316L stainless steel cable mesh with hand-crimped ferrules. Flexible, corrosion-resistant, fully customizable for balustrade infill, zoo enclosure, green wall, facade and safety projects.

Material Specifications

All our ferrule-locked stainless steel rope mesh undergoes strict factory-level quality inspection prior to shipment. Material batches are verified to satisfy AISI standards for 304, 304L, 316 and 316L stainless steel grades, complying with ISO/TS 15510:2003 material-testing requirements.

Grade	C (%)	Si (%)	Mn (%)	Cr (%)	Ni (%)	S (%)	P (%)
304	≤0.07	≤1.0	≤2.0	17.0–19.0	8.0–11.0	≤0.03	≤0.035
304L	≤0.03	≤1.0	≤2.0	17.0–19.0	8.0–12.0	≤0.03	≤0.035
316	≤0.08	≤1.0	≤2.0	16.0–18.5	10.0–14.0	≤0.03	≤0.035
316L	≤0.03	≤1.0	≤2.0	16.0–18.0	12.0–15.0	≤0.03	≤0.045

For coastal-area projects or working environments exposed to chloride salts and high-temperature conditions, 316-grade stainless steel is our recommended option. Thanks to molybdenum (Mo) alloying element within its chemical composition, a denser protective passive layer forms over the metal surface. This greatly improves resistance against chloride-induced corrosion and delivers longer service life under harsh outdoor surroundings.

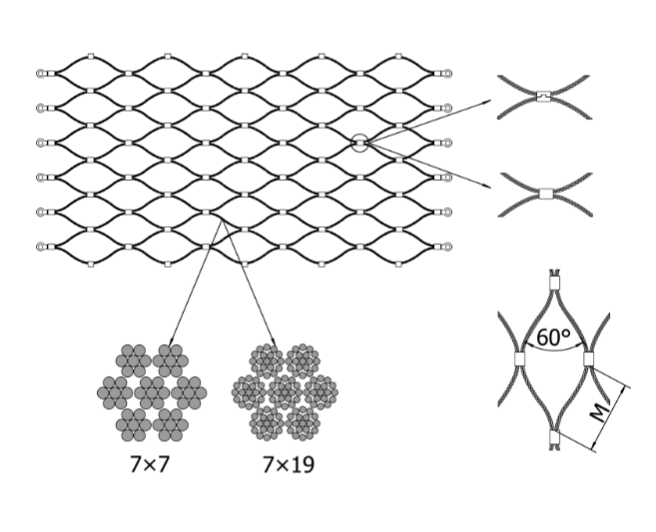

Product Structure

Cable Construction:
7×7 and 7×19 wire-rope configurations are available for different load-bearing scenarios.

Ferrule Options:
Both closed ferrule and open-end ferrule styles can be supplied upon request.

Rope Diameter (D):
Refers to the actual outer diameter of the stainless steel wire rope.

Mesh Opening Angle:
Standard opening angles cover 20°, 30°, 60°, 70°, 75°. The 60-degree setting delivers the most balanced stretching performance in practical projects.

Aperture Size (M):
Defines the inner dimension of each diamond mesh opening.

Key Benefits

🔧

Simple installation & long service life

Individual wire ropes are securely locked by metal ferrules, simplifying field assembly. Stainless-steel material delivers high tensile strength and load capacity while keeping overall weight low.

📦

Flexible layout & convenient logistics

The mesh can be freely bent and folded without hurting mechanical performance. It can be rolled up compactly, greatly lowering shipping and packaging costs.

🌊

Superior anti-corrosion & weather-proof

We produce mesh from grade 304, 304L, 316, 316L stainless steel. These grades stand up well against rain, UV and salty-air environments for long-term outdoor deployment.

📐

Fully customizable solution

Custom-tailored mesh is supported to match your project requirements. Rope thickness, opening dimension and mesh aperture can all be adjusted.

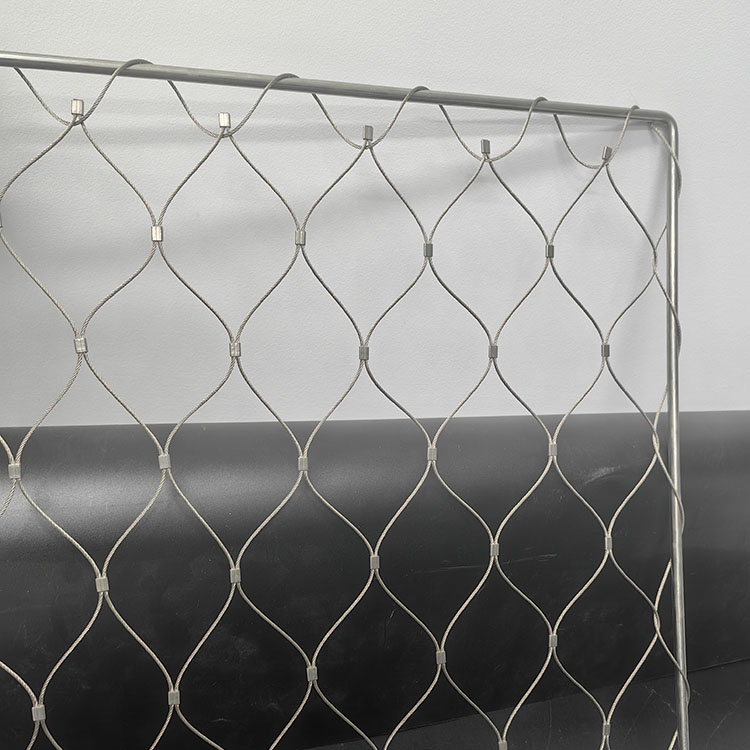

Stainless Steel Ferrule Rope Mesh Real Shot

Technical Specifications

Below-listed data covers mainstream ferrule-locked wire rope mesh options. Custom sizes are also acceptable for special-purpose projects.

Model No.	Wire Rope Structure	Wire-Rope Diameter (D)		Mesh Aperture (M)		Min Breaking Force (kN)
Model No.	Wire Rope Structure	inch	mm	inch	mm	Min Breaking Force (kN)
WCH-4076F	7×19	5/32"	4.0	3"×3"	76×76	10.7
WCH-4090F	7×19	5/32"	4.0	3.6"×3.6"	90×90	10.7
WCH-40102F	7×19	5/32"	4.0	4"×4"	102×102	10.7
WCH-40127F	7×19	5/32"	4.0	5"×5"	127×127	10.7
WCH-40152F	7×19	5/32"	4.0	6"×6"	152×152	10.7
WCH-40203F	7×19	5/32"	4.0	8"×8"	203×203	10.7
WCH-32152F	7×19	1/8"	3.2	6"×6"	152×152	7.38
WCH-32127F	7×19	1/8"	3.2	5"×5"	127×127	7.38
WCH-32120F	7×19	1/8"	3.2	4.7"×4.7"	120×120	7.38
WCH-32102F	7×19	1/8"	3.2	4"×4"	102×102	7.38
WCH-3290F	7×19	1/8"	3.2	3.6"×3.6"	90×90	7.38
WCH-3276F	7×19	1/8"	3.2	3"×3"	76×76	7.38
WCH-3260F	7×19	1/8"	3.2	2.4"×2.4"	60×60	7.38
WCH-3251F	7×19	1/8"	3.2	2"×2"	51×51	7.38
WCH-24152F	7×7	3/32"	2.4	6"×6"	152×152	4.18
WCH-24127F	7×7	3/32"	2.4	5"×5"	127×127	4.18
WCH-24102F	7×7	3/32"	2.4	4"×4"	102×102	4.18
WCH-2490F	7×7	3/32"	2.4	3.6"×3.6"	90×90	4.18
WCH-2476F	7×7	3/32"	2.4	3"×3"	76×76	4.18
WCH-2460F	7×7	3/32"	2.4	2.4"×2.4"	60×60	4.18
WCH-2451F	7×7	3/32"	2.4	2"×2"	51×51	4.18
WCH-2076F	7×7	5/64"	2.0	3"×3"	76×76	3.17
WCH-2060F	7×7	5/64"	2.0	2.4"×2.4"	60×60	3.17
WCH-2051F	7×7	5/64"	2.0	2"×2"	51×51	3.17
WCH-2038F	7×7	5/64"	2.0	1.5"×1.5"	38×38	3.17
WCH-16102F	7×7	1/16"	1.6	4"×4"	102×102	2.17
WCH-1676F	7×7	1/16"	1.6	3"×3"	76×76	2.17
WCH-1660F	7×7	1/16"	1.6	2.4"×2.4"	60×60	2.17
WCH-1651F	7×7	1/16"	1.6	2"×2"	51×51	2.17
WCH-1638F	7×7	1/16"	1.6	1.5"×1.5"	38×38	2.17
WCH-1630F	7×7	1/16"	1.6	1.2"×1.2"	30×30	2.17
WCH-1625F	7×7	1/16"	1.6	1"×1"	25.4×25.4	2.17
WCH-12102F	7×7	3/64"	1.2	4"×4"	102×102	1.22
WCH-1276F	7×7	3/64"	1.2	3"×3"	76×76	1.22
WCH-1251F	7×7	3/64"	1.2	2"×2"	51×51	1.22
WCH-1238F	7×7	3/64"	1.2	1.5"×1.5"	38×38	1.22
WCH-1230F	7×7	3/64"	1.2	1.2"×1.2"	30×30	1.22
WCH-1225F	7×7	3/64"	1.2	1"×1"	25.4×25.4	1.22
WCH-1220F	7×7	3/64"	1.2	0.8"×0.8"	20×20	1.22

Typical Application Scenarios

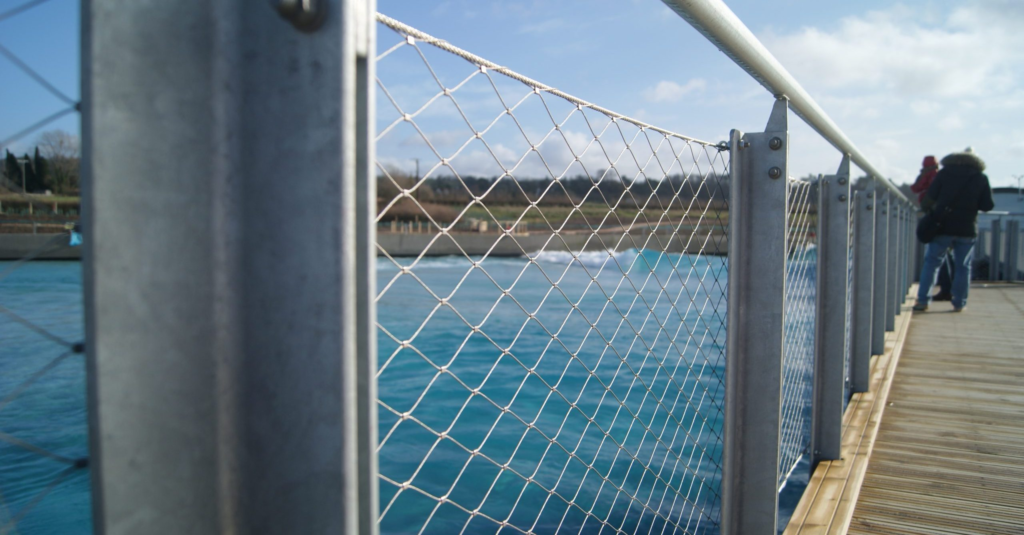

Our ferrule-locked stainless steel cable mesh finds wide deployment across multiple sectors. It serves as climbing support for green plants, safety infill for outdoor balustrades, animal-enclosure fencing in zoos, safety protection for architectural facades and other custom-designed projects.

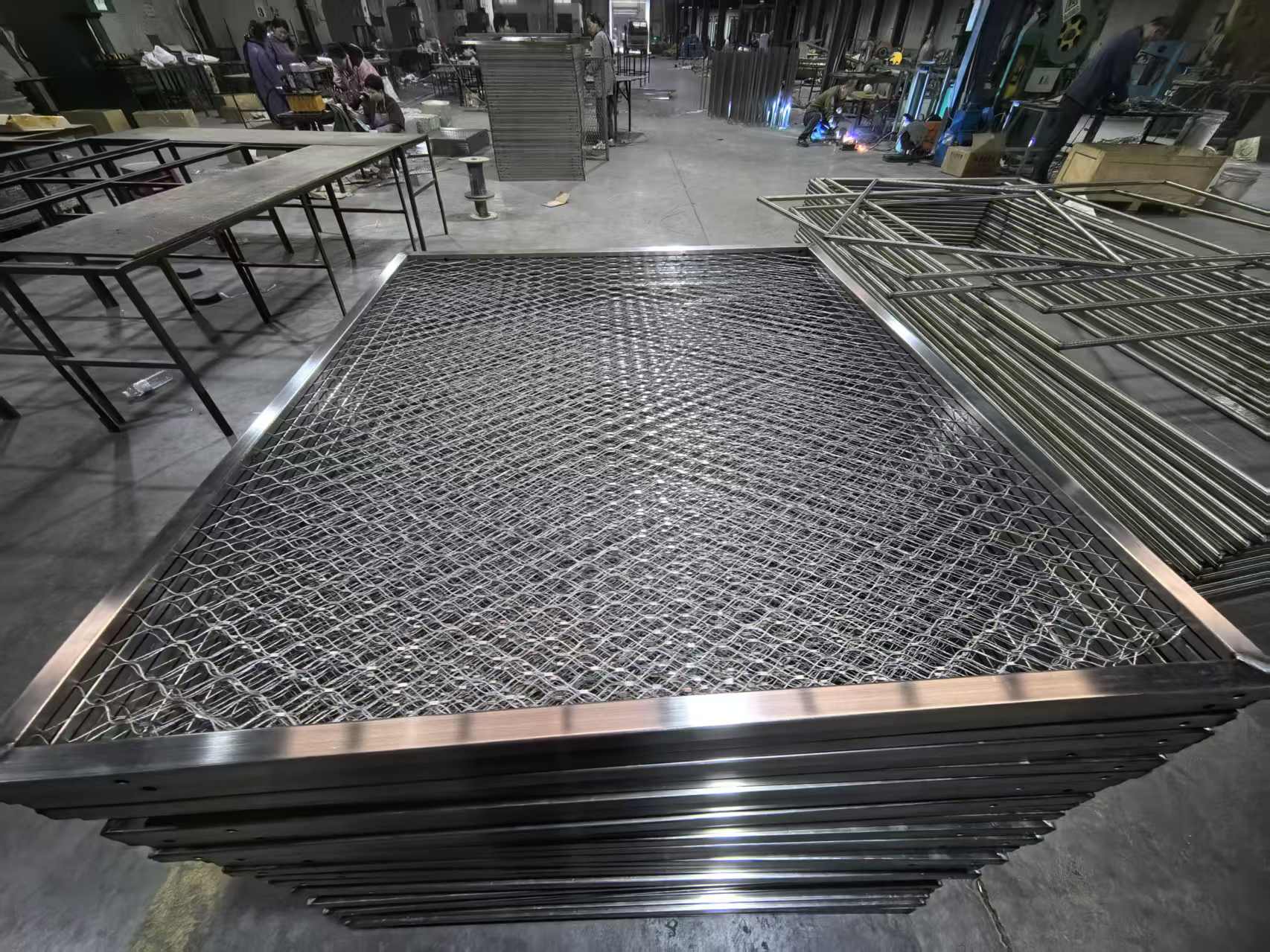

Product Gallery & Quality Inspection

Every batch goes through strict dimensional verification before shipment. Inspections cover mesh aperture dimension, ferrule spacing, wire-rope diameter check, finished-goods packing and appearance examination to guarantee consistent product quality.
