Defensive Barrier (ГНТ) — Hesco Barrier

Rapid-deploy earth-filled defensive barrier (ГНТ). Welded wire mesh cage lined with geotextile fabric, filled with local sand or soil. Used for military blast walls, flood control, border security, ammunition depot protection, and critical infrastructure defense. Also known as Hesco Bastion, Hesco bag, military gabion box, explosion-proof cage.

⚡

Rapid Deployment

Fold flat, expand and fill in minutes.

💥

Blast Protection

Withstands blasts, fragments and small arms.

🌊

Flood Control

Emergency levees against river flooding.

♻️

Reusable

Empty, fold and redeploy anywhere.

Product Specifications

Spec Table 1 — ZR Defensive Barrier (MIL / EPW Series)

Unit Type	Height (m)	Width (m)	Length (m)	Internal Cells
MIL 1	1.37	1.06	10	9 cells (4+5)
MIL 2	0.61	0.61	1.22	2 cells
MIL 3	1.0	1.0	10	10 cells (5×2)
MIL 4	1.0	1.5	10	10 cells (5×2)
MIL 5	0.61	0.61	3.05	5 cells (5×1)
MIL 6	1.68	0.61	3.05	5 cells (5×1)
MIL 7	2.21	2.13	27.74	13 cells (4+4+5)
MIL 8	1.37	1.22	10	9 cells (4+5)
MIL 9	1.0	0.76	9.14	12 cells (6×2)
MIL 10	2.12	1.52	30.5	20 cells (5×4)
MIL 1.9	2.74	1.06	3.3	3 cells (3×1)
EPW 1	2.1	1.06	33	30 cells (5×6)

Spec Table 2 — Russian ГНТ Series (Быстровозводимые габионы насыпного типа)

Parameter	ГНТ-1 (Small)	ГНТ-2 (Standard)	ГНТ-3	ГНТ-4 (Large)	ГНТ-5 (XL)
Dimensions L×W×H (m)	0.6×0.6×3.6 (6 cells)	3.6×0.9×1.2 (4 cells)	3.65×1.2×1.2 (3 cells)	3.2×1.6×1.2	7.1×1.5×1.5 (5 sections)
Transport size (m)	0.6×0.6×0.6 (folded)	0.95×1.2×0.05	1.25×1.2×0.15	1.2×0.9×0.25	3.8×1.4×1.2
Fill volume (m³)	1.6–2.1	1.2 / cell	7.4–7.8	4.4	—
Fill weight (t)	2.4–3.5	1.8–2.6	8.8–12.9	6.6–9.7	—
Mesh opening (mm)	100×100	100×100	75×75	100×100	75×75
Wire diameter (mm)	≥4 (4–5)	≥4	4	≥4	4
Geotextile (g/m²)	400–500	500	500	400–500	500
Unit weight (kg)	~12–16	16	—	—	—
Fill method	Manual / mechanical	Mainly mechanical	Mechanical	Mechanical	Mechanical
Reference price (₽)	~11,174	~14,520	—	~21,737	—

Material & Technical Parameters

Parameter	Value
Wire mesh	Welded steel wire mesh
Mesh opening	75×75 mm / 100×100 mm
Wire diameter	≥ 4 mm (4–5 mm)
Surface treatment	Hot-dip galvanized / Powder coated
Geotextile lining	PP non-woven, 400–500 g/m²

Parameter	Value

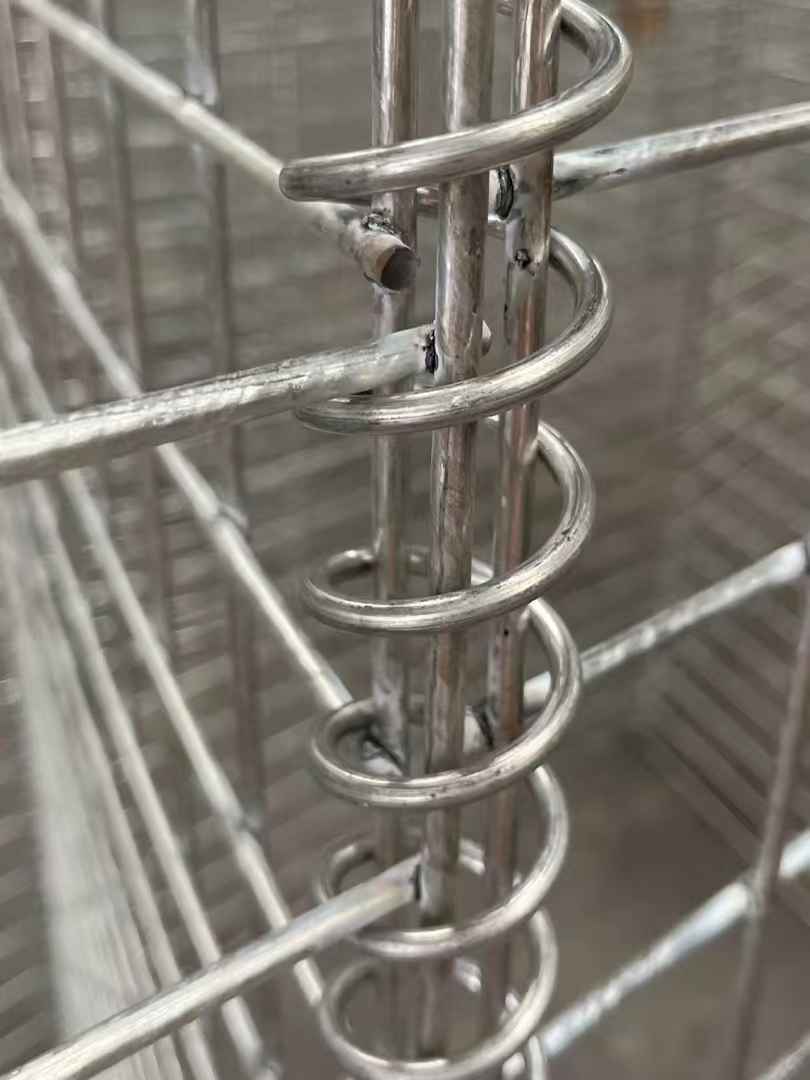

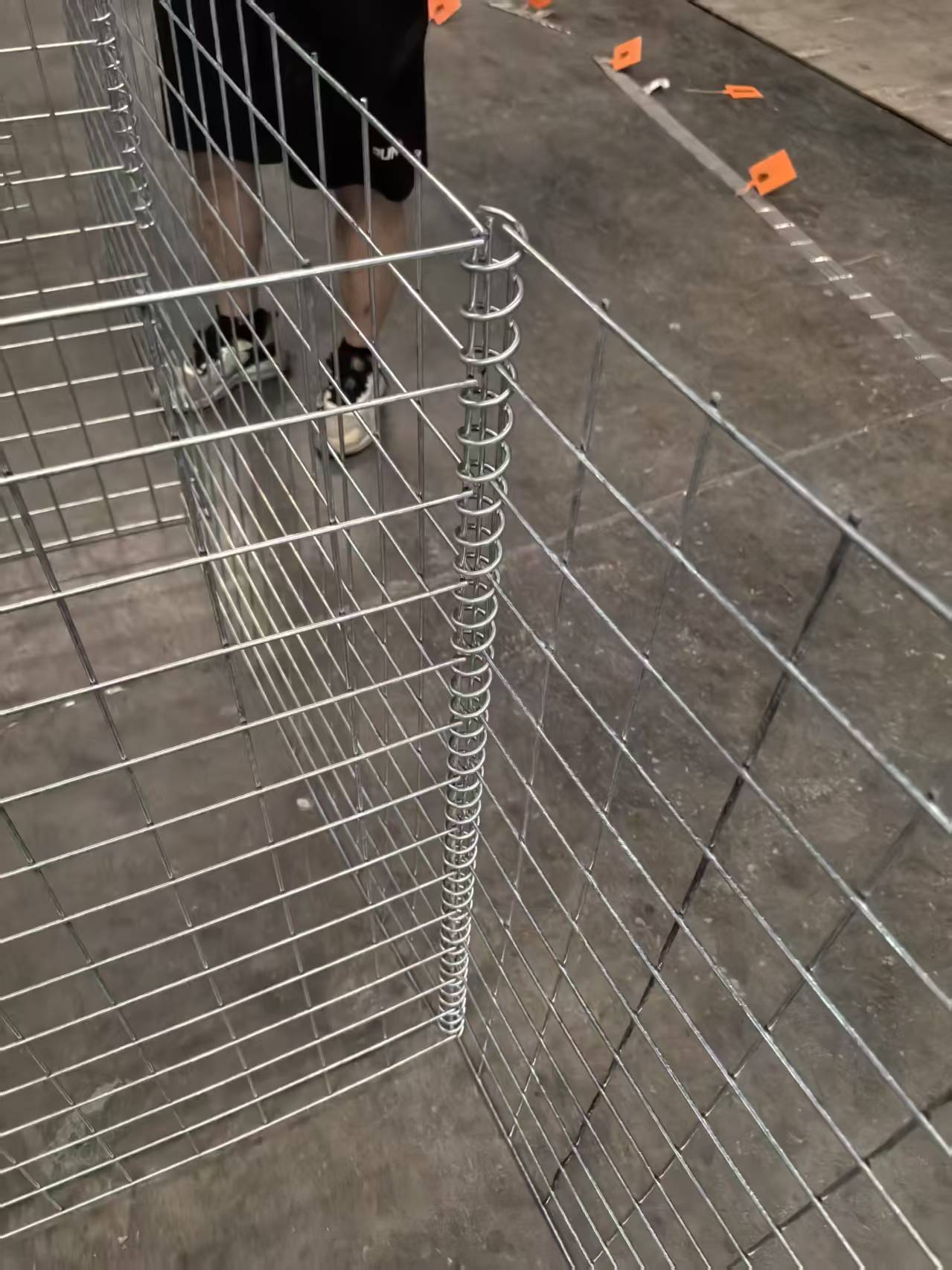

Connection method	Spring clips / Helical connectors
Folding thickness	50–150 mm (flat folded)
Fill material	Local sand, soil, gravel or rock

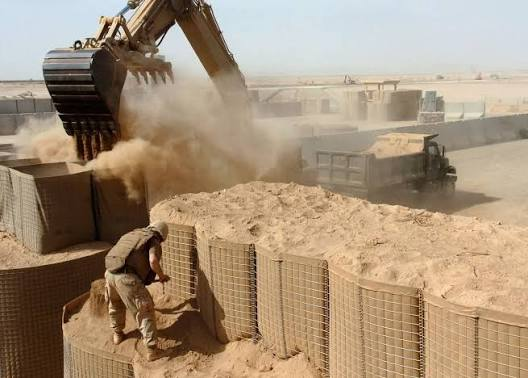

Fill method	Manual / Excavator / Front-end loader
Reusability	Unlimited — empty, fold, redeploy

Ballistic & Blast Test

Our team conducted live-fire testing on-site to verify the barrier's real-world protection performance. The video shows direct small arms fire and blast impact against a fully assembled defensive barrier. The earth-filled core effectively absorbs and dissipates projectile energy and blast overpressure, protecting personnel and equipment behind the wall.

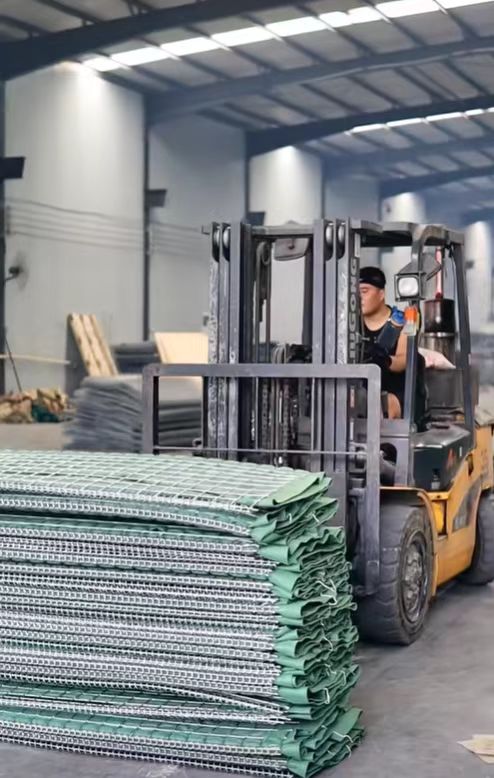

Factory Production & Packaging

Browse our factory production line, welding quality control, geotextile lining, and final packaging. Click the arrows to view all 14 images. Click any image to enlarge.

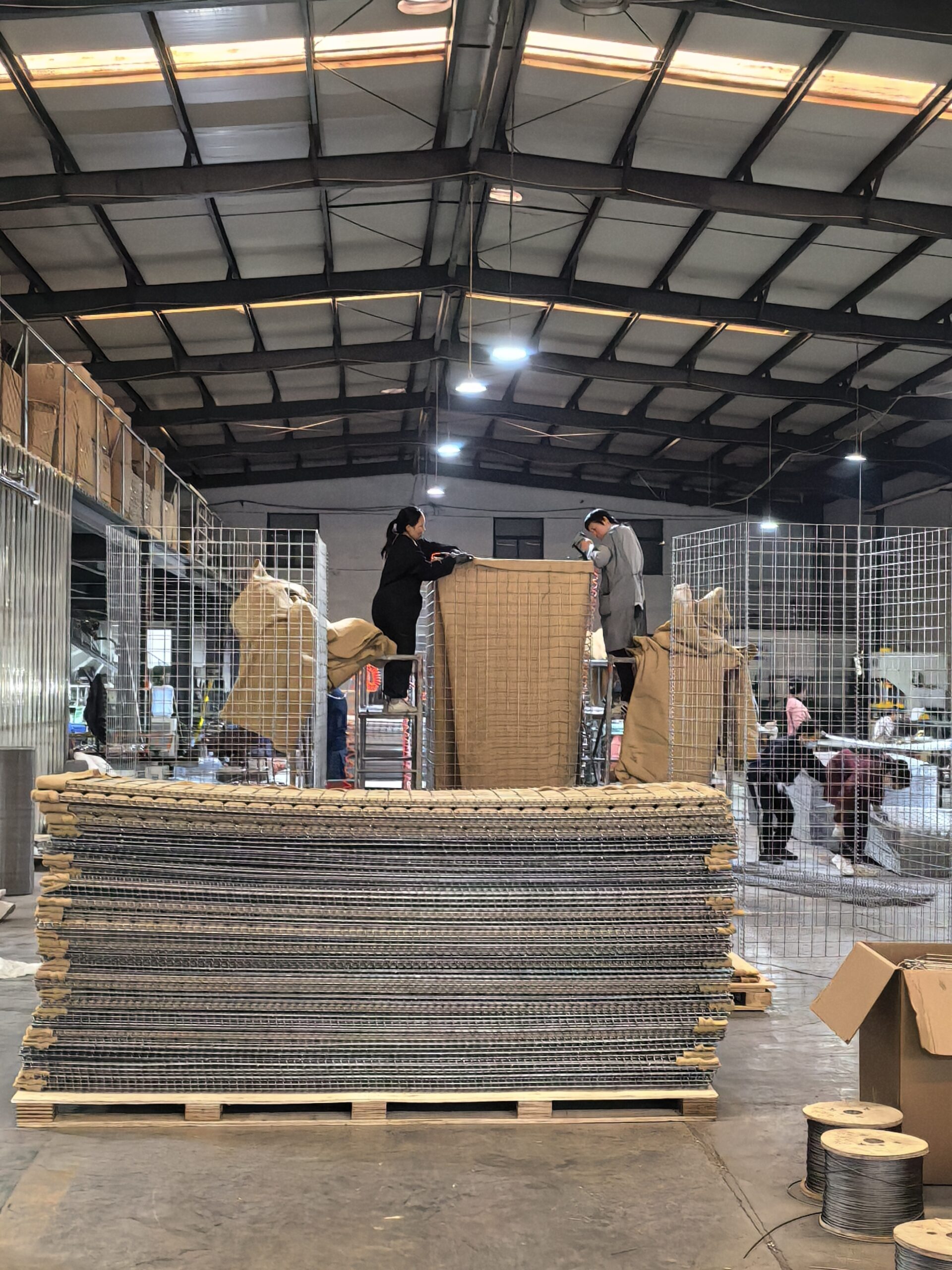

Welding production line

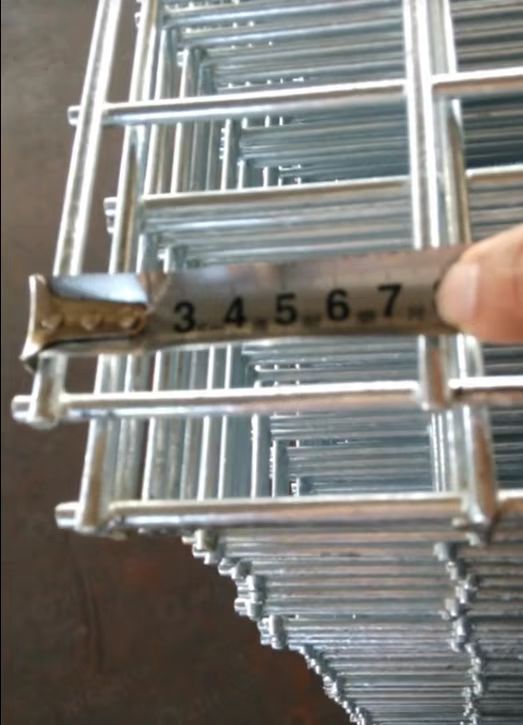

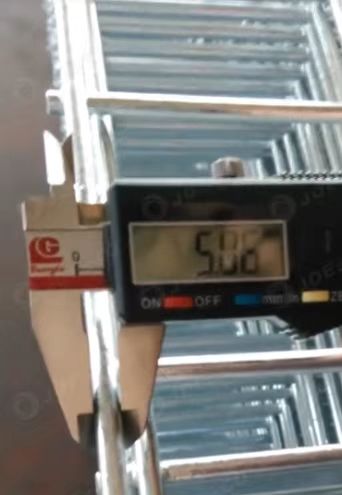

Mesh quality inspection

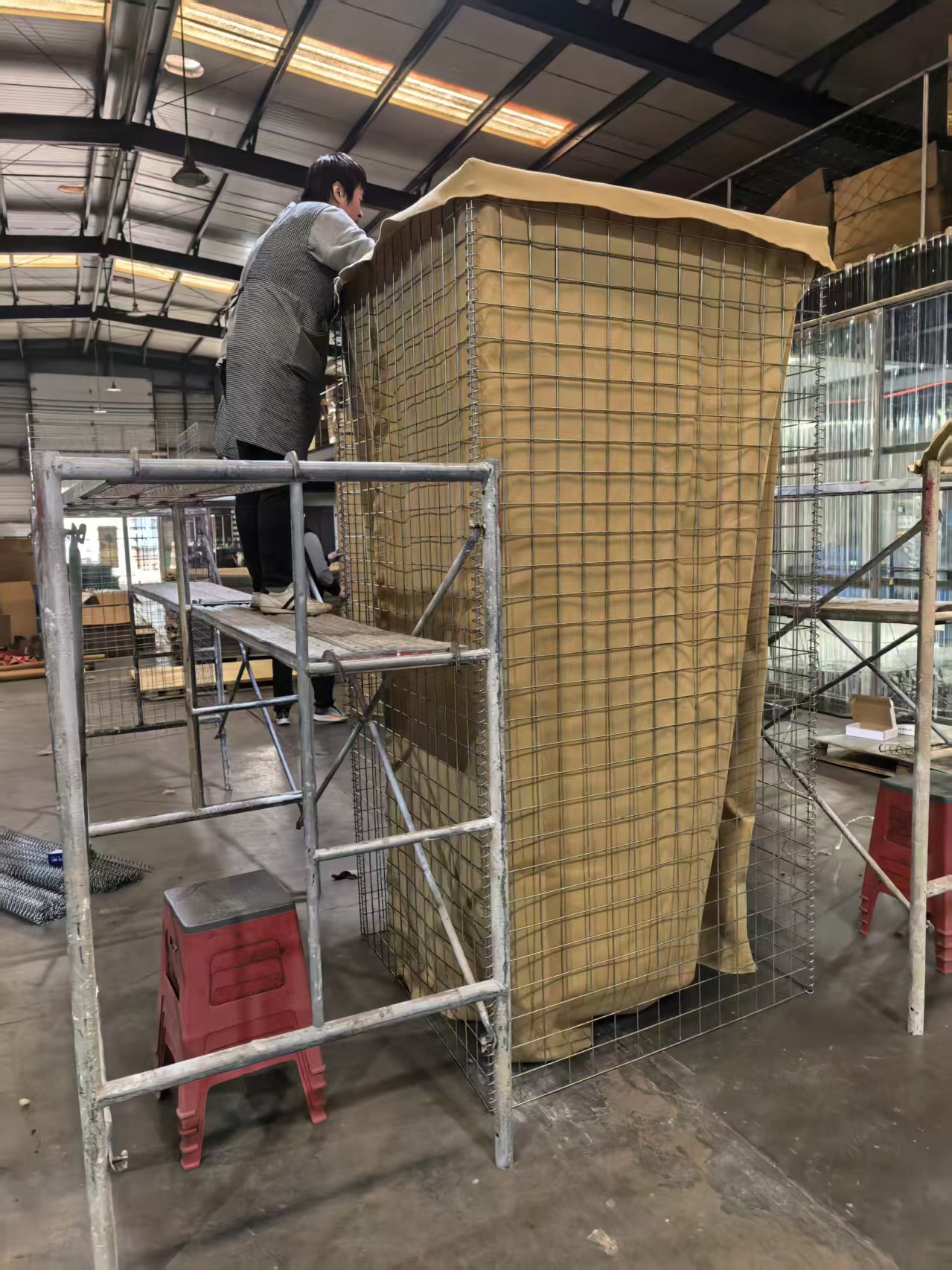

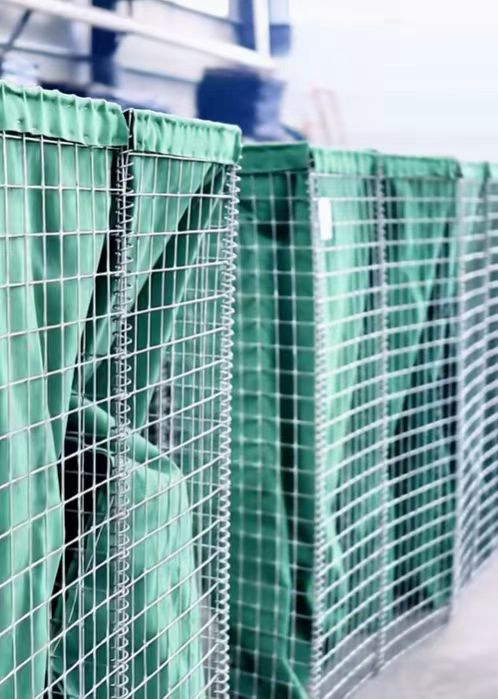

Geotextile lining

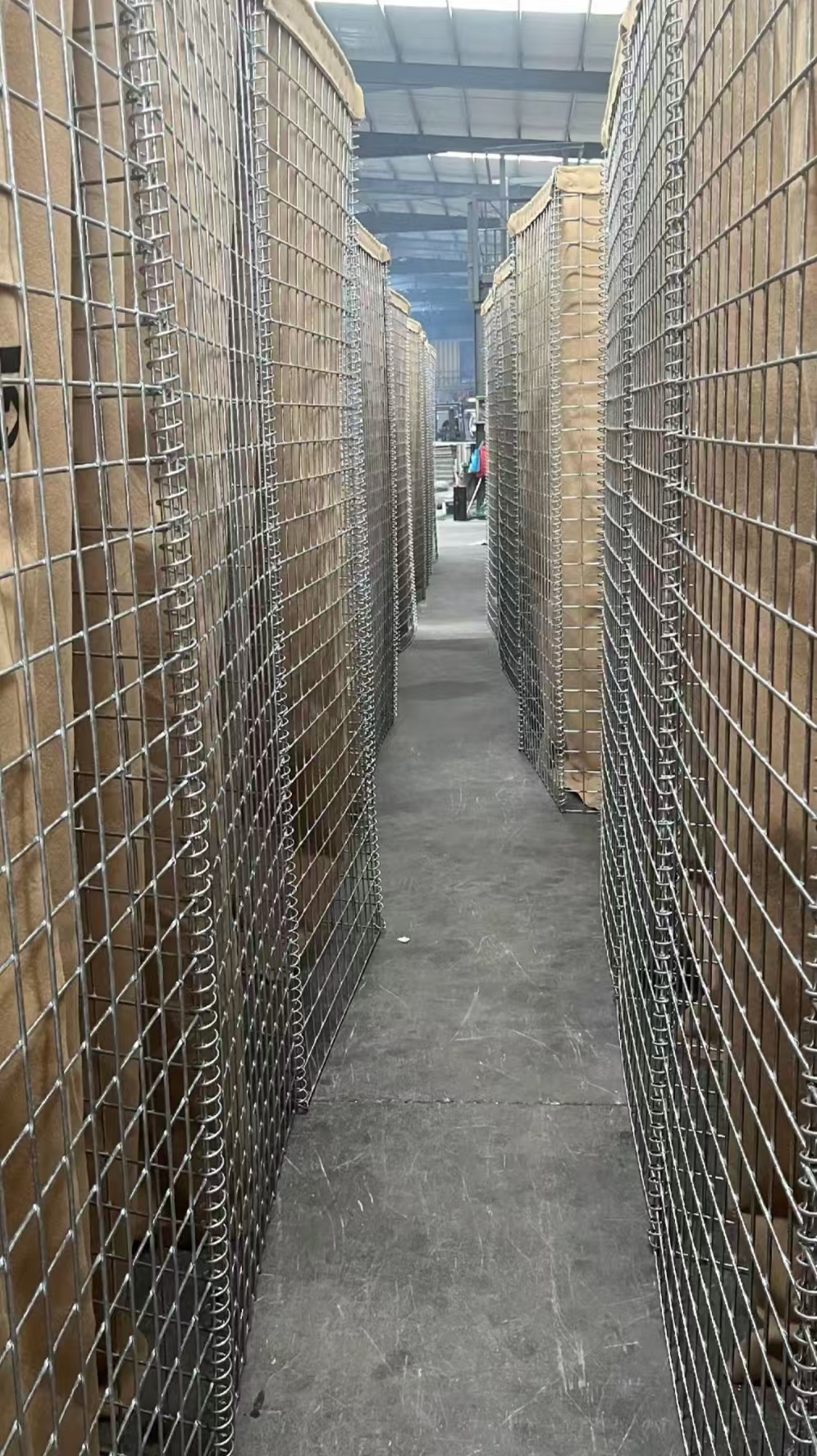

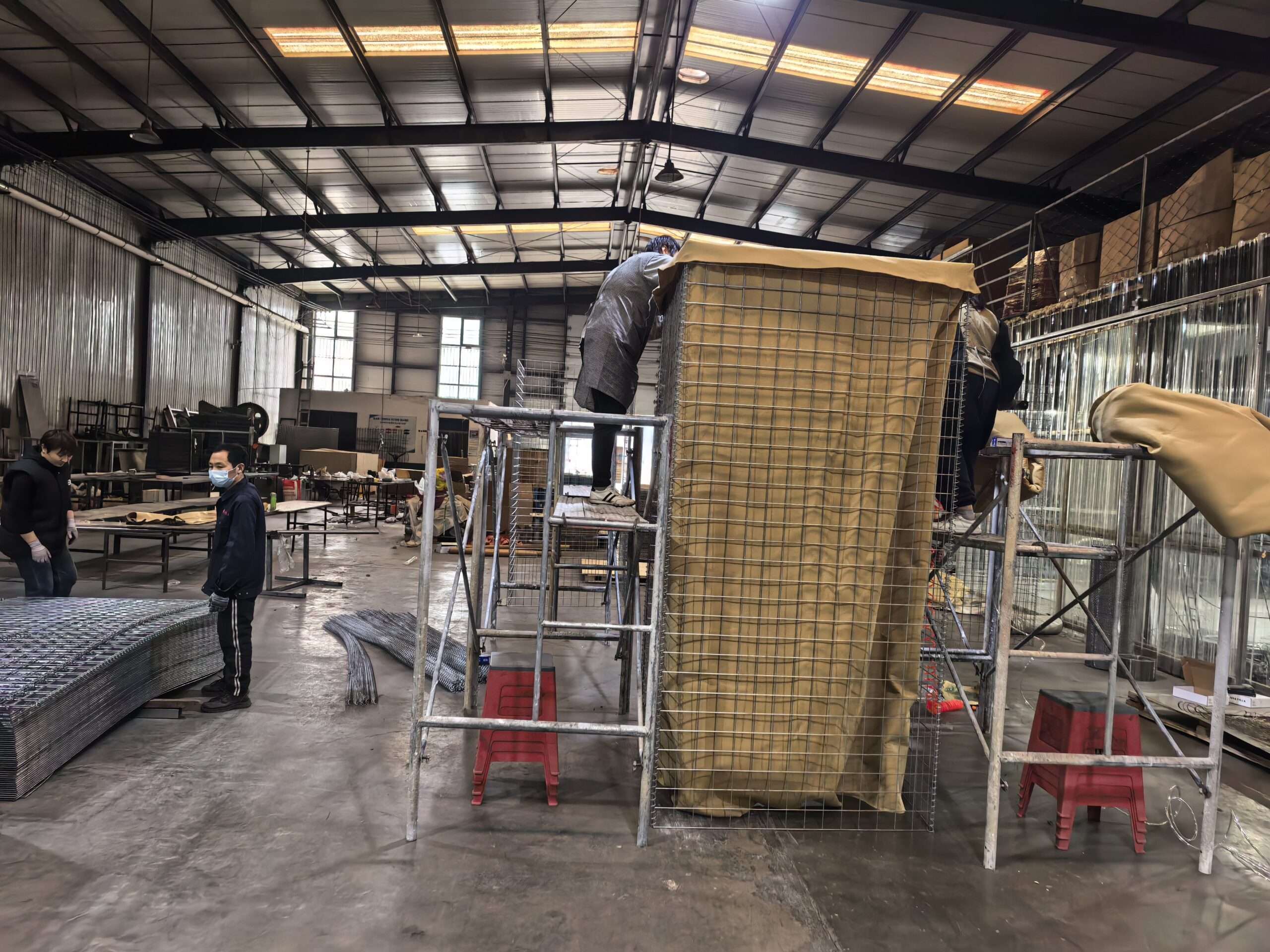

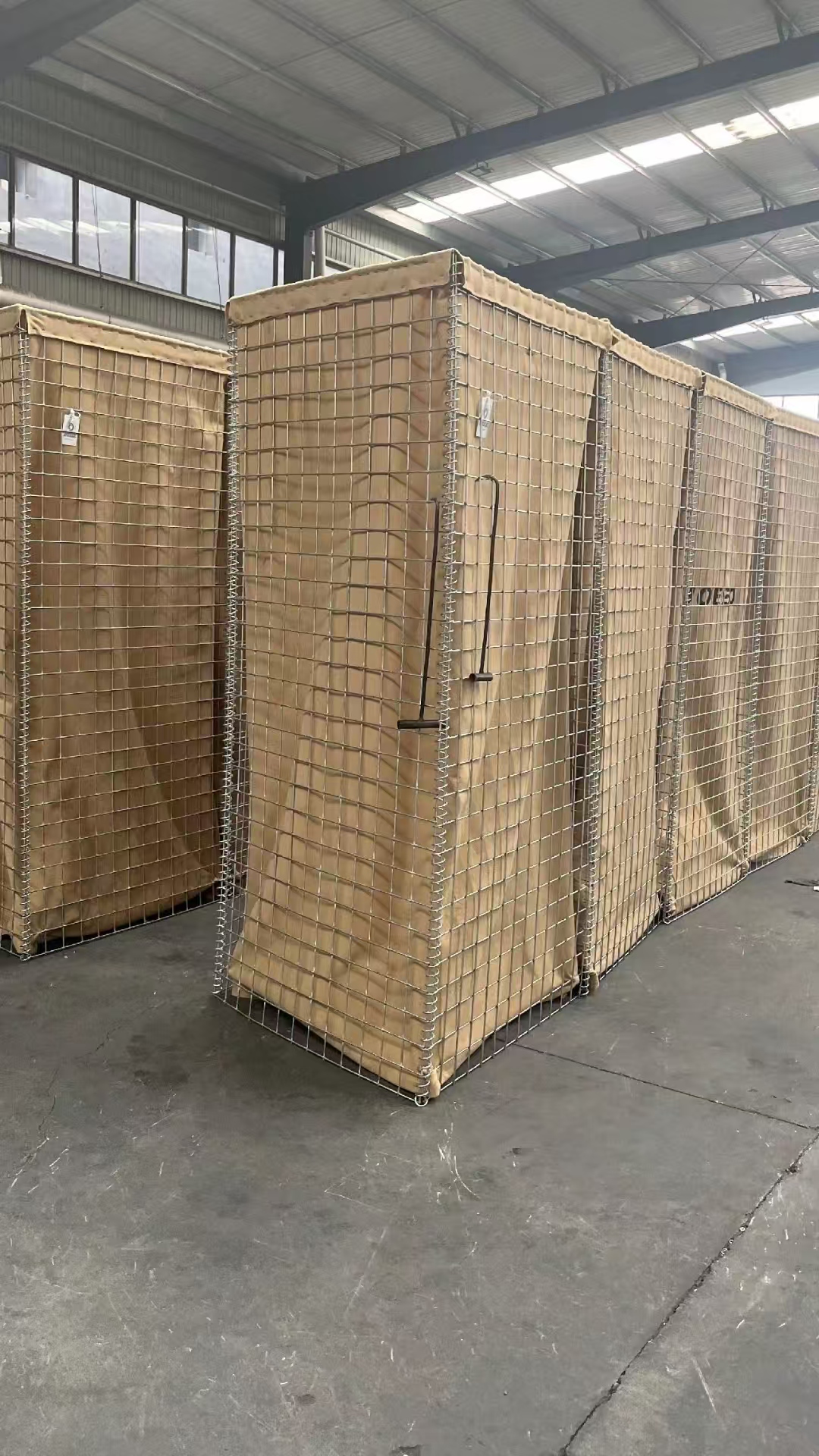

Assembly workshop

1 / 4

Production Line Videos

Welding & mesh production

Assembly & lining process

Packaging & container loading

Application Scenarios

🎖️

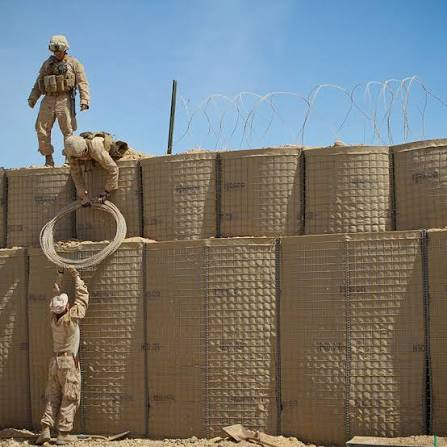

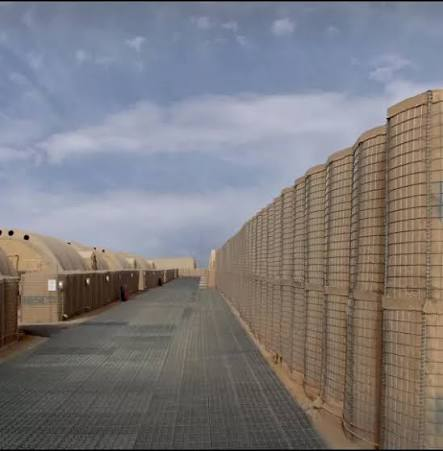

Military Defense

Base perimeter, blast walls, bunkers, ammunition depots, shooting ranges. Withstands RPG fragments, artillery shrapnel and small arms fire.

🌊

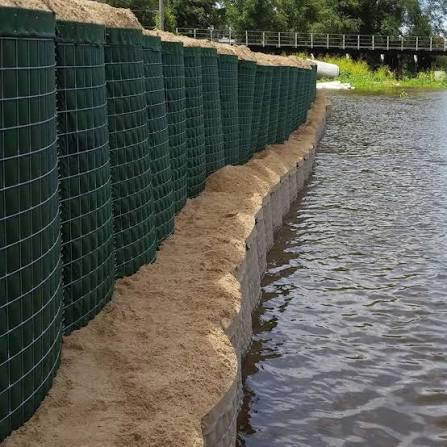

Flood Control

Emergency levees, river bank reinforcement, flood diversion barriers. Deployed in 10,700m during Hurricane Katrina. Far more effective than sandbags.

🚧

Border & Perimeter

Border security walls, facility perimeter, vehicle ramming protection, access control. Rapidly construct long continuous barriers without concrete.

🏗️

Civil Engineering

Retaining walls, erosion control, debris flow protection, embankment stabilization, temporary road barriers. Reusable after project completion.

Production Capacity & Trade Terms

Production capacity: 50,000 units per month, scalable for bulk orders
Lead time: 500 units – 10 working days; 2,000 units – 20 working days; 10,000+ units – 35 working days
Customization: Size, mesh opening, wire diameter, color (green/beige/black), and geotextile weight all customizable
Russian local bank account: Available for customer transfers, rich experience with Russian and CIS buyers
Trade terms: EXW / FOB / CIF / DDP door-to-door service available

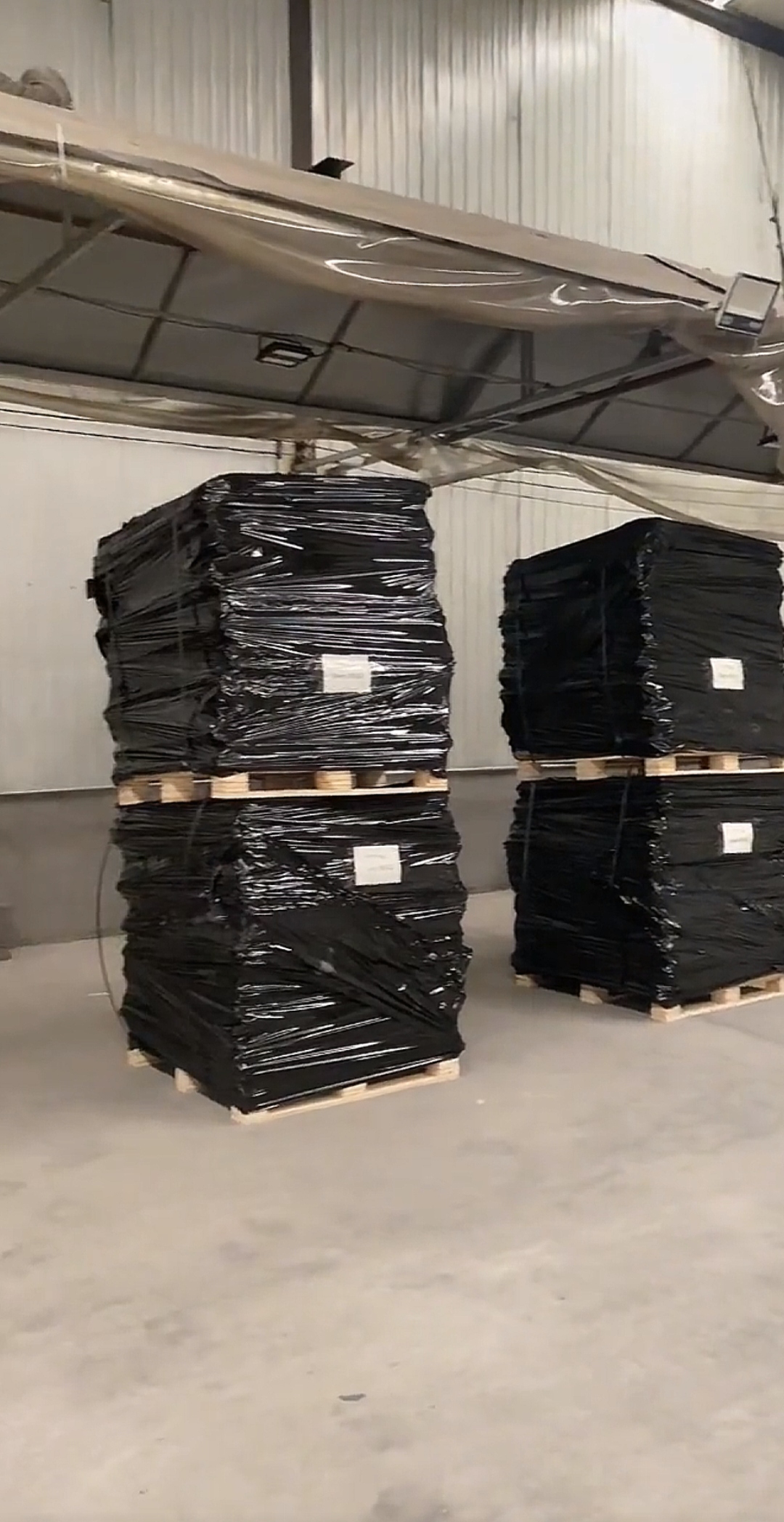

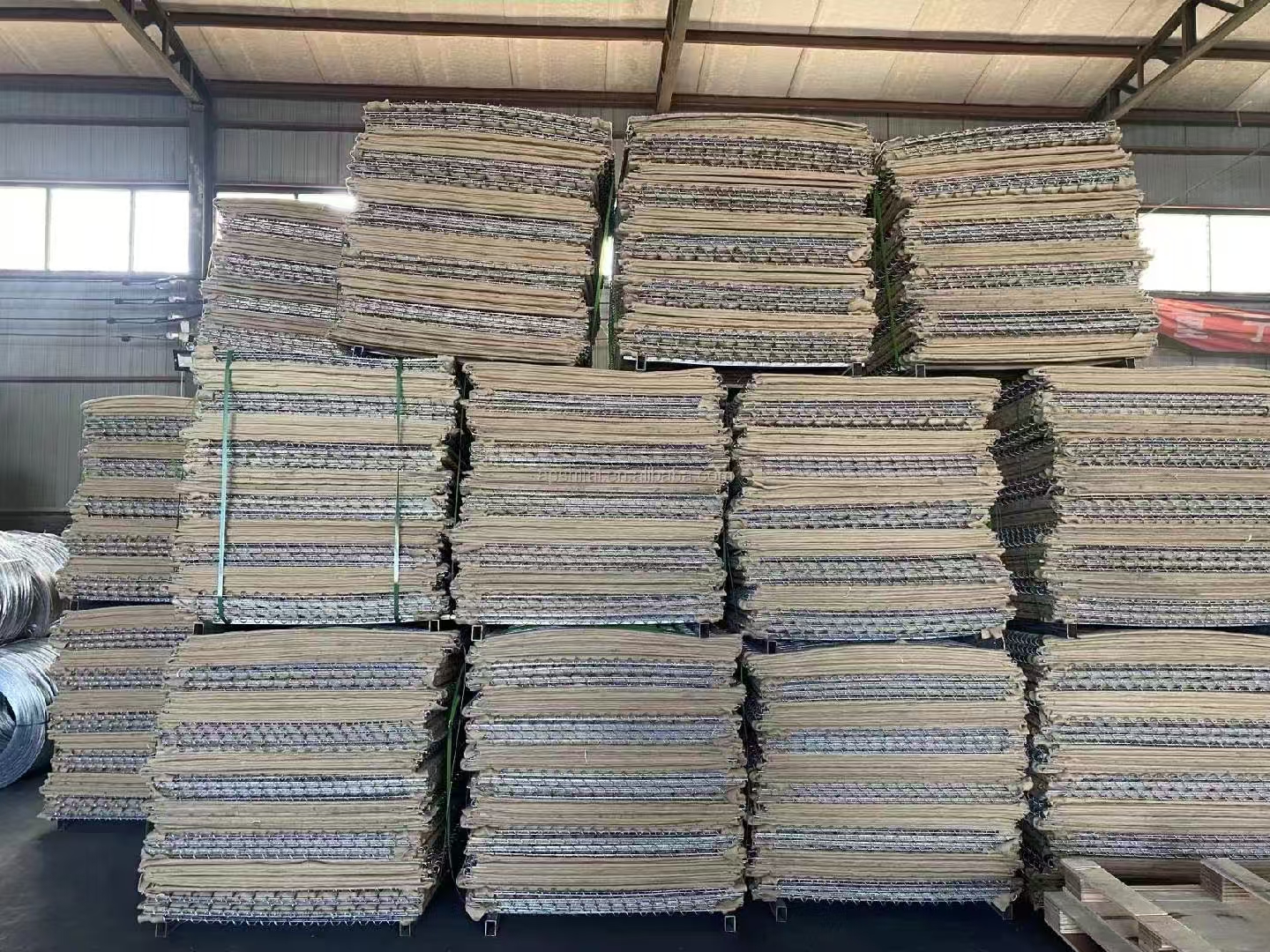

Packaging: Flat folded, palletized, shrink-wrapped. One 40HQ container holds approx. 300–500 units depending on model
Certification: Material test reports, galvanizing thickness test, and welding quality inspection available

Send Inquiry

Need a custom solution?

We can customize rope diameter, mesh opening, size and frame fittings to meet your project requirements.
