Key Points for Rope Mesh Application in Public‑Access Safety Projects

Release Date: August 07, 2026 | Category: Public Infrastructure & Safety Design

1. Mandatory Aperture Anti‑Trapping Standard

• Global universal 100mm sphere rule: All mesh openings must prevent a 100mm diameter sphere passing through.
• Schools, nurseries and children activity zones: Strictly adopt ≤40mm diamond aperture to eliminate head/limb trapping hazard.
• Anti‑climb limit: Aperture ≤40mm avoids footholds for kids or visitors to climb over barriers.

2. Wire Diameter & Mesh Type Selection Rule

• Public safety balustrade only allows ferrule‑crimped rope mesh, hand‑knotted mesh is prohibited for vertical safety walls.

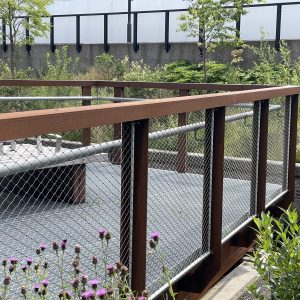

• General public terrace / stair: 2.0mm stainless wire rope; high‑flow stadium & rooftop court upgrade to 2.4mm for heavy impact resistance.
• Mesh joints are permanently locked, no knot sliding under long‑term human pushing & leaning load.

3. Material Grade By Site Environment

4. Installation Structural Safety Key Points

• Support post spacing maximum 1000mm, wider span causes excessive mesh deflection under lateral human load.
• Mesh must maintain moderate uniform tension; over‑tightening distorts aperture, slack creates enlarged gaps.
• Anchors only fixed on solid concrete / structural steel, hollow wall & thin plaster are forbidden mounting base.
• Cut wire ends fully deburred to eliminate scratch injury risk for public visitors.

5. Public Project Compliance & Inspection Documents

All public tender projects require complete material test certificates (MTC), tensile strength test reports and salt spray resistance data. Before handover, conduct sphere anti‑trapping test and lateral load simulation inspection. You can check our balustrade installation guide for full on‑site operation standards.

6. Common Public Project Design Mistakes To Avoid
